SVM 20/200 WEB
Valve test benches

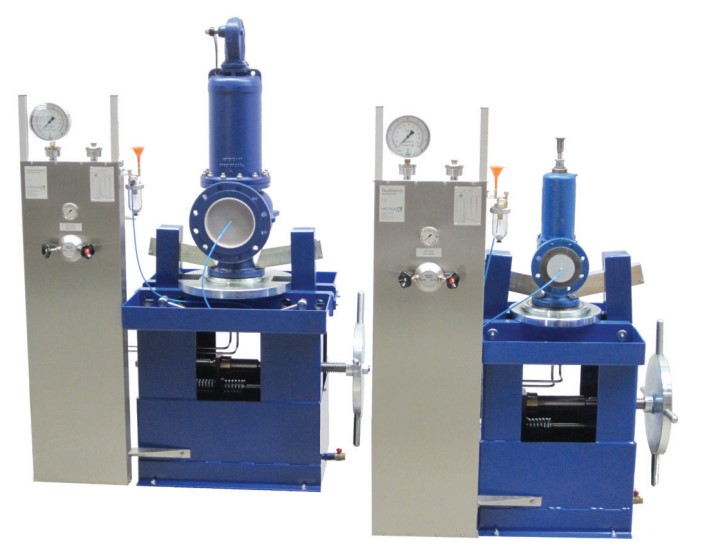

SVM 20/200 WEB Edition
The SVM 20/200 WEB Edition is a mobile safety valve test bench designed for fast delivery and standardized testing applications.
This version provides a preconfigured solution covering typical testing requirements, reducing lead time and simplifying implementation.
The system covers valve sizes from DN 10 to DN 200 and supports pressure testing with nitrogen or air up to 600 bar.
This mobile valve test bench is ideal for users who require a ready-to-use solution with short delivery times.
With basic equipment, the delivery time is only 4 weeks.

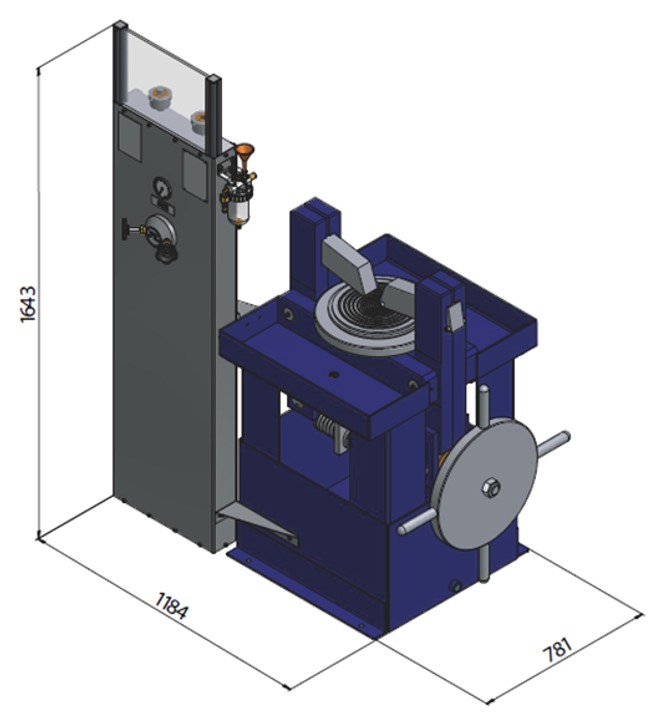

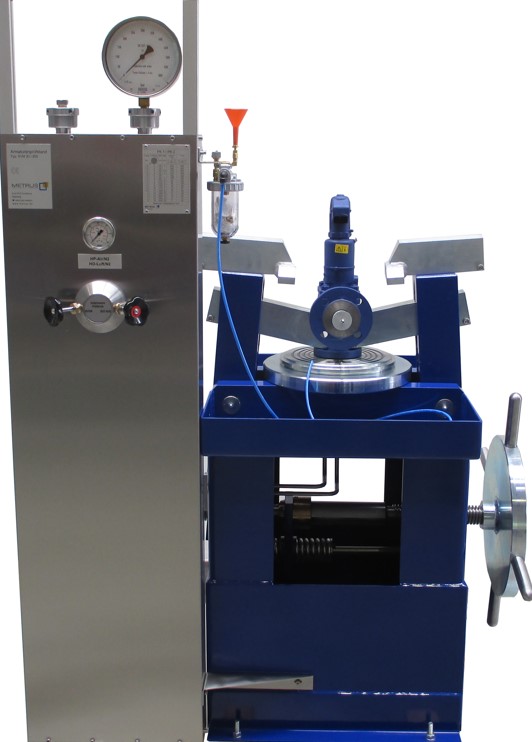

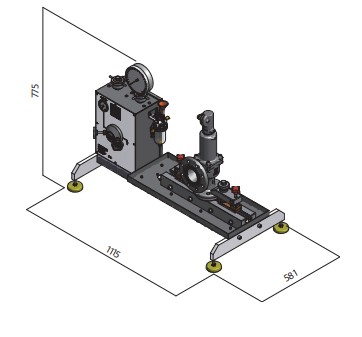

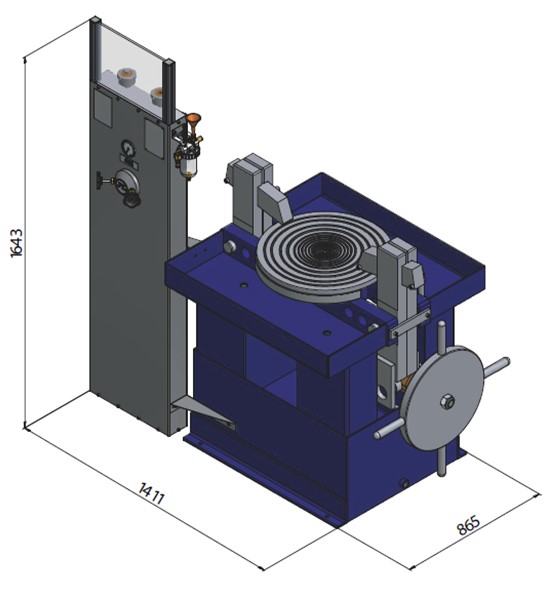

Figure may contain options.
Basic features
- Clamping range: DN15-DN200 1/2’’- 8’’
- Clamping force: 20 to
- Way of clamping: manual fast clamping system with auto evening, maintenance free
- Test fl uid: Gas/air (external supply)
- Pressure piping: PN600 bar stainless steel
- Stainless steel control panel
- Bubble counter + rubber plugs up to DN 100
- Gauge quick connection for tool free change of gauges
- METRUS Precision valves

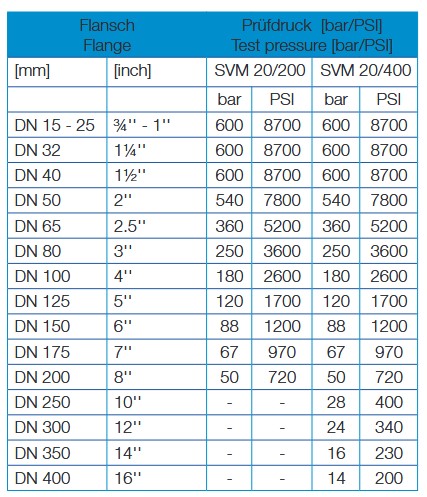

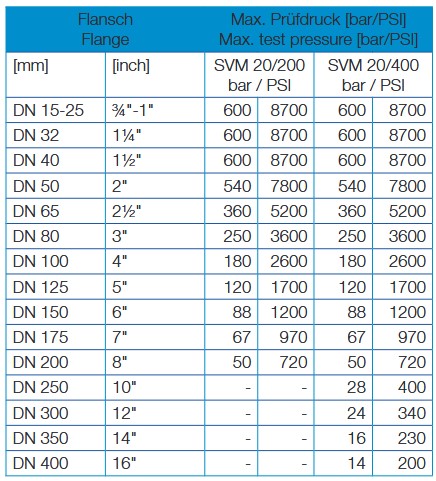

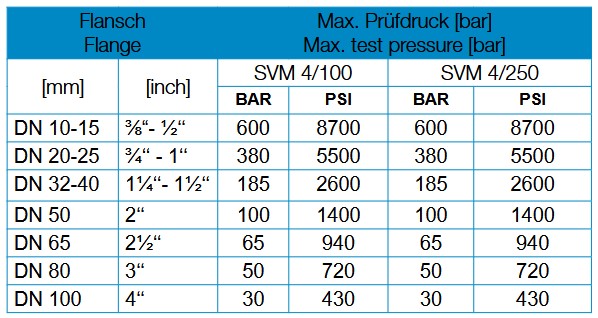

Max. Test pressure
