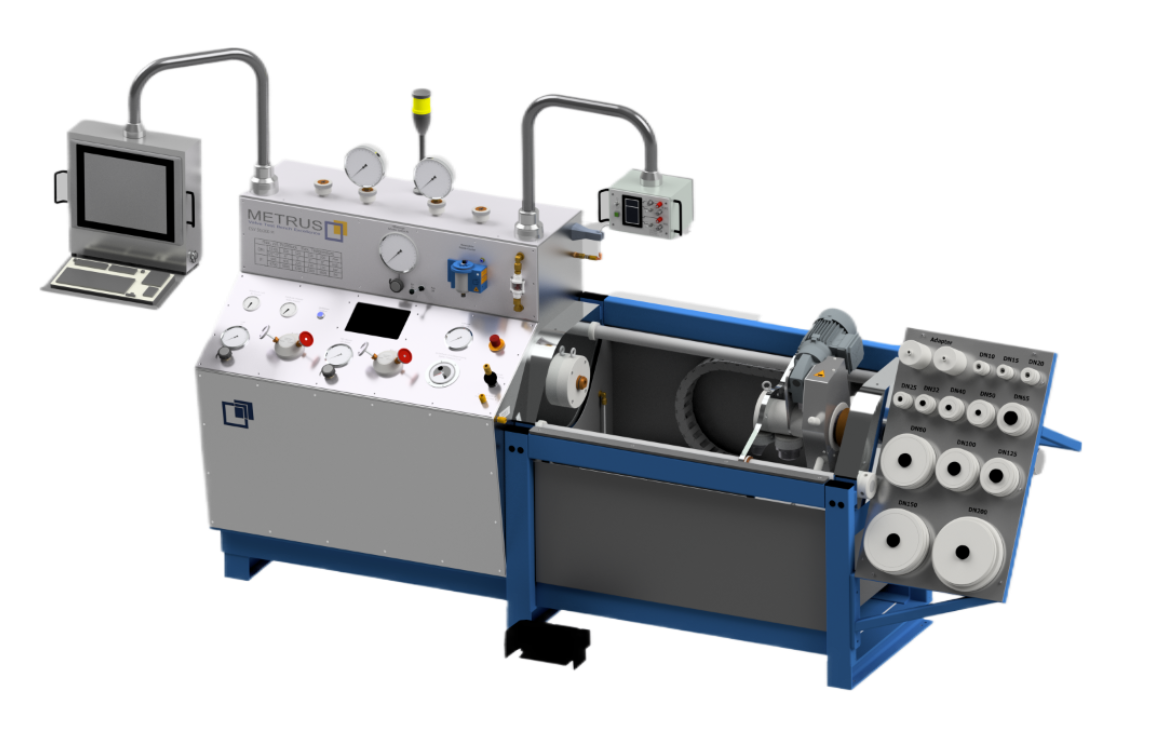

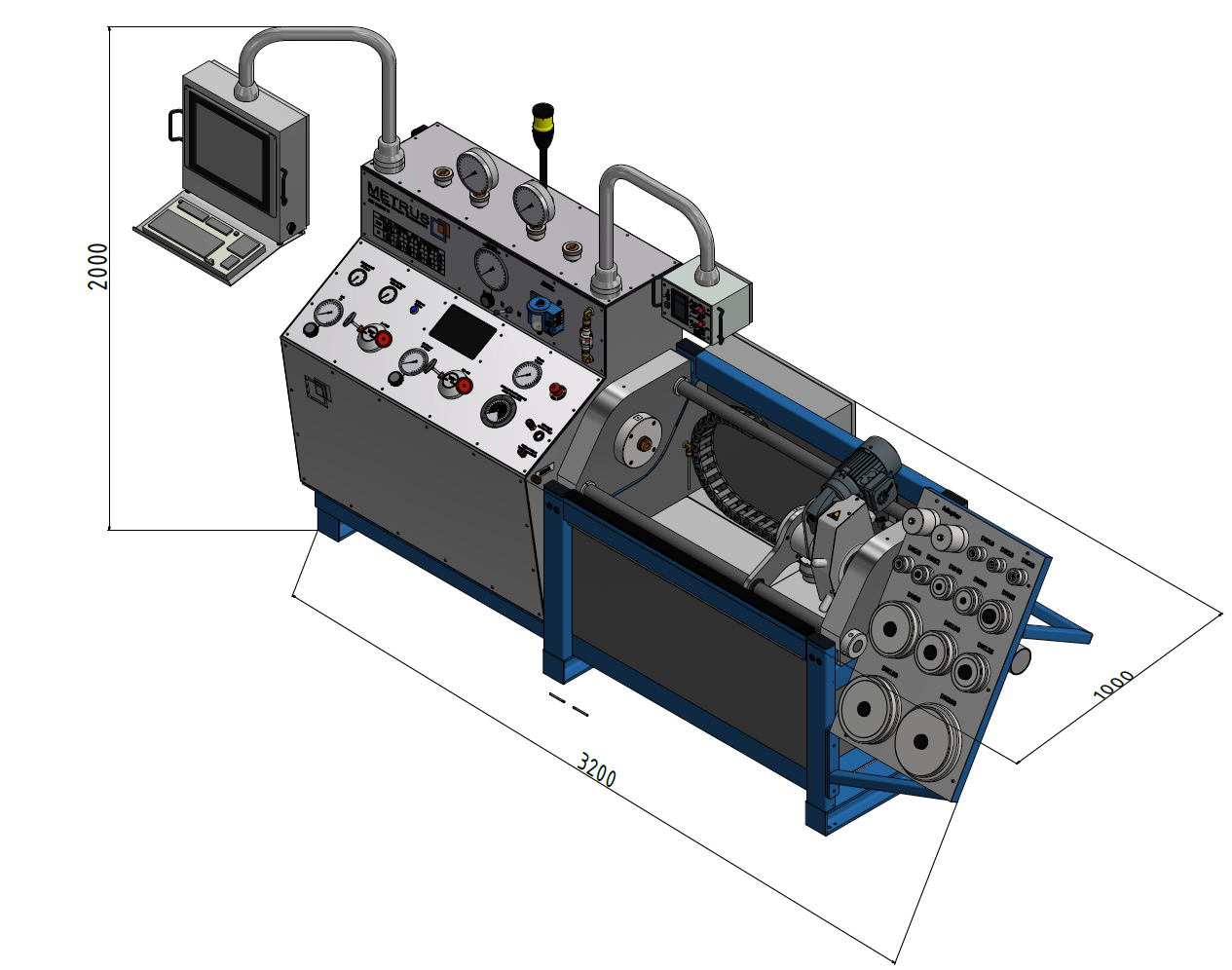

CSV 50/200 M – Modular Test Bench for Control and Shut-off Valves
The CSV 50/200 M is a next-generation modular test bench designed for precise and reliable testing of control and shut-off valves. Based on a proven platform, it now features an expanded modular architecture. With eleven optional modules — including CRS with laser bubble counter, bidirectional air/water testing, a motorized clamping drive, and a digital control panel — the system can be individually configured to meet the highest performance and flexibility requirements.
Figure may contain options.
Basic features
- Clamping range: DN10-DN200 ⅜"- 8"
- Clamping force: 50 tons
- Way of clamping: Automatic sealing heads
- Aux. pressure: Air up to 6 bar / 87 PSI
- Pressure piping: PN600 bar stainless steel
- Shell test with water up to 600 bar / 8700 PSI
- Seat leakage test with air up to 6 bar / 87 PSI
- Bubble counter
- Stainless steel control panel
- Anodized, chemical resistant front panel
- Stainless steel two chamber water tank
- Additional filling pump
- Maintenance free vacuum system
- Gauge quick connection for tool free change of gauges (2x)
- METRUS Precision valves
Modules
- CRS computer registration system wiht laser bubble counter
- Flow meter for leak measurement with air/digital for CRS
- Flow meter for leak measurement with air/analogue
- Laser bubble counter without CRS
- Setpoint transmitter 0-20mA and 0-24V DC
- Bidirectional testing with low-pressure air
- Bidirectional testing with higt-pressure water
- Elektric drive for the clamping spindle
- Protective enclosure
- Digital control panel
- Contact pressure gauge for test pressure limitation

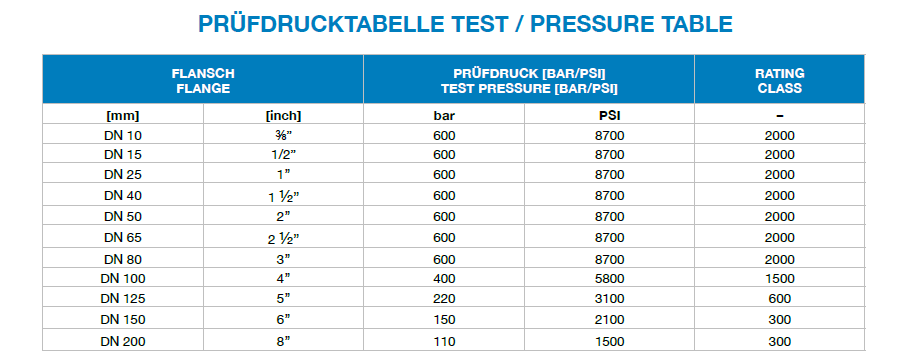

Max. Test Pressure
